Disgrifiad
Nodweddion
- Cyfarfod ROHS, cynnyrch gwyrdd.
- Sglodyn edrych ochr dan arweiniad gyda phlatio tun
- LED sglodion algap llachar iawn
- Pecyn mewn tâp 8mm ar riliau diamedr 7 ".
- Pecyn STD EIA.
- IC yn gydnaws.
- Yn gydnaws ag offer lleoliad awtomatig.

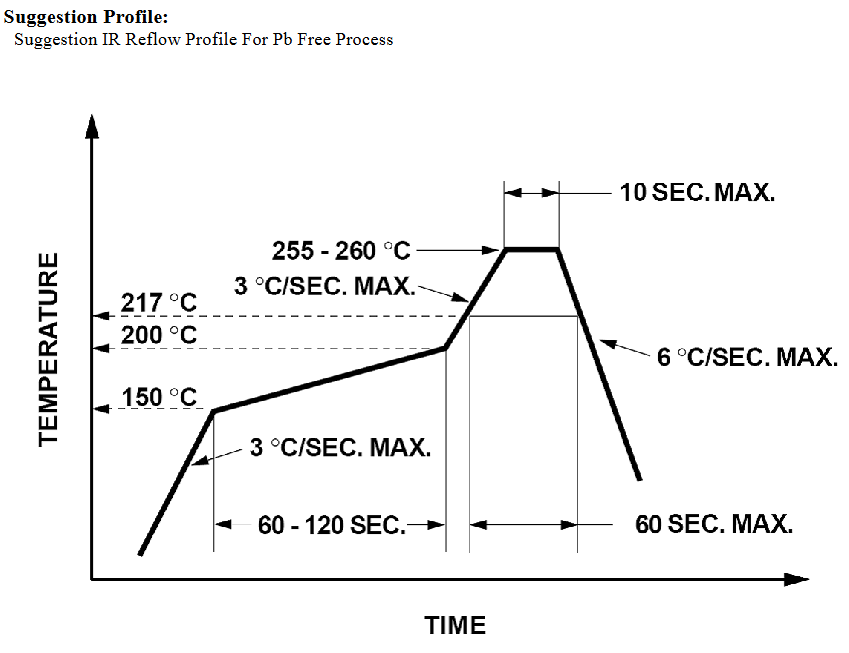

- Yn gydnaws â phroses sodr ail -lenwi is -goch.
| Rhan Na | Dimensiwn allanol | Lliwiff | Tonfedd amlycaf | Dwyster goleuol |
|---|---|---|---|---|
| Ltst - s320kdkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Coched | 630-645 @ 20mA | 6.3 ~ 50 @ 20mA |
| Ltst - s320kfkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Oren | 605 @ 20mA | 45 ~ 280 @ 20mA |
| Ltst - s320kgkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Wyrddach | 571 @ 20mA | 18 ~ 71 @ 20mA |
| Ltst - s320krkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Coched | 631 @ 20mA | 18 ~ 180 @ 20mA |
| LTST - S320KKSKT | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Felynet | 589 @ 20mA | 45 ~ 180 @ 20mA |
| Ltst - s320tbkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Glas | 470 @ 20mA | 28 ~ 180 @ 20mA |
| Ltst - s320tgkt | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Wyrddach | 525 @ 20mA | 71 ~ 450 @ 20mA |
| Ltst - s320zbkt-5a | 3.00 (l) x 2.00 (w) x 1.00 (h) mm | Glas | 470.0-475.0 @5mA | Teip . 14.0 @ 5mA |
