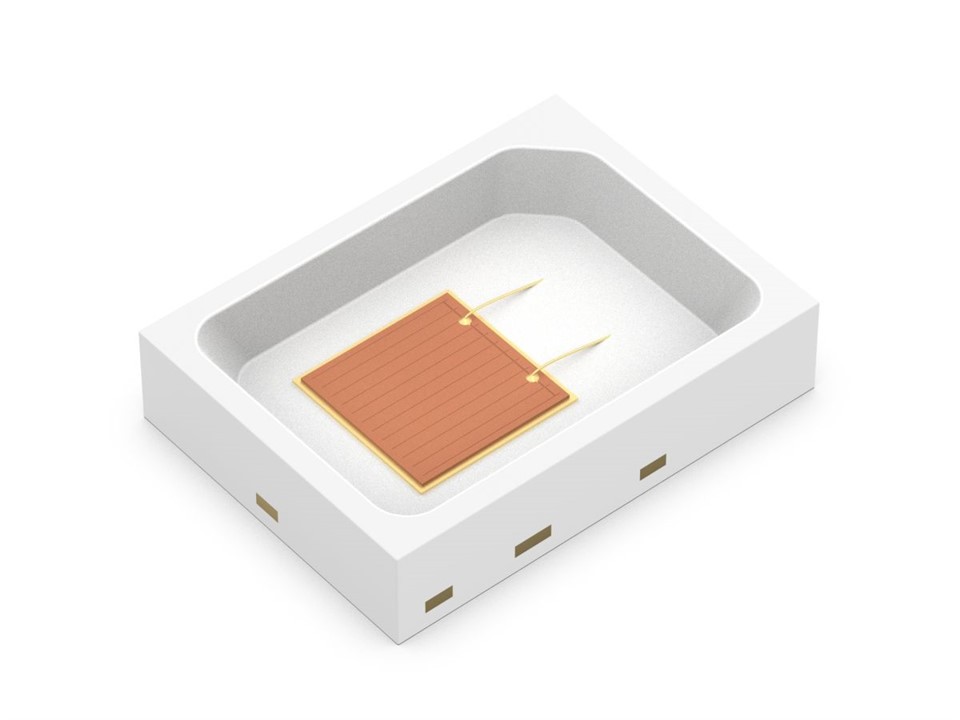

Rf - a4e27 - r30e-r4

- Pecyn Gludo Tabl Fertigol, Perfformiad Vulcanization gwrth --

Anfon ymchwiliad Sgwrs Nawr

Llwytho i lawr

Disgrifiad

1.1 Disgrifiad

Gwneir y dyfeisiau lliw ffynhonnell goch gydag algalnp ar ddeuod allyrru golau swbstrad.

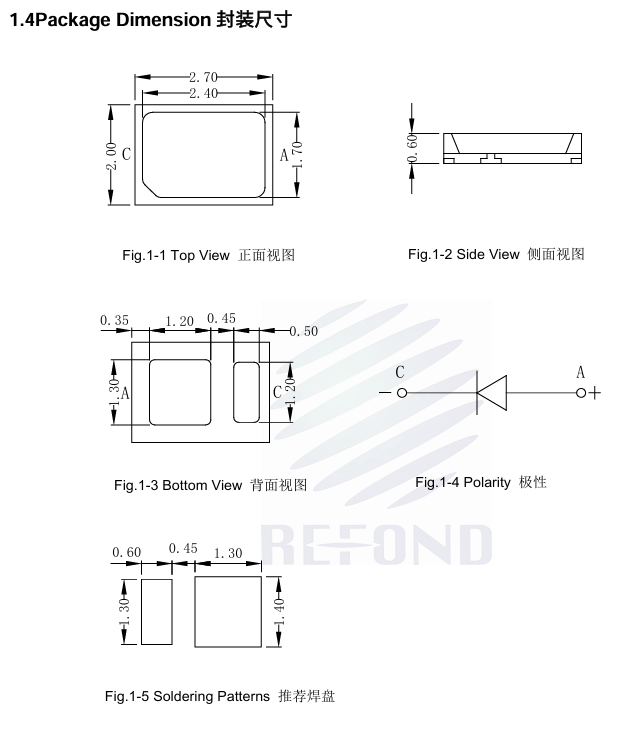

Pecyn Cynnyrch: 2.7mmx2.0mmx0.6mm.

1.2Features

Pecyn ►EMC.

► Angle gwylio o led.

►Suitable ar gyfer yr holl broses ymgynnull SMT a sodr.

► Ar gael ar dâp a rîl.

►moisture Lefel Sensitifrwydd: Lefel 2.

► Cydymffurfio â ROHS a Reach.

►Qualifications: Mae'r cynllun prawf cymhwyster cynnyrch yn seiliedig ar ganllawiau AEC - Q102 Cymhwyster Prawf Straen ar gyfer lled -ddargludyddion arwahanol gradd modurol

1.3 Application

► LLEOLIADAU AUTOMOTIVE y tu mewn a'r tu allan.

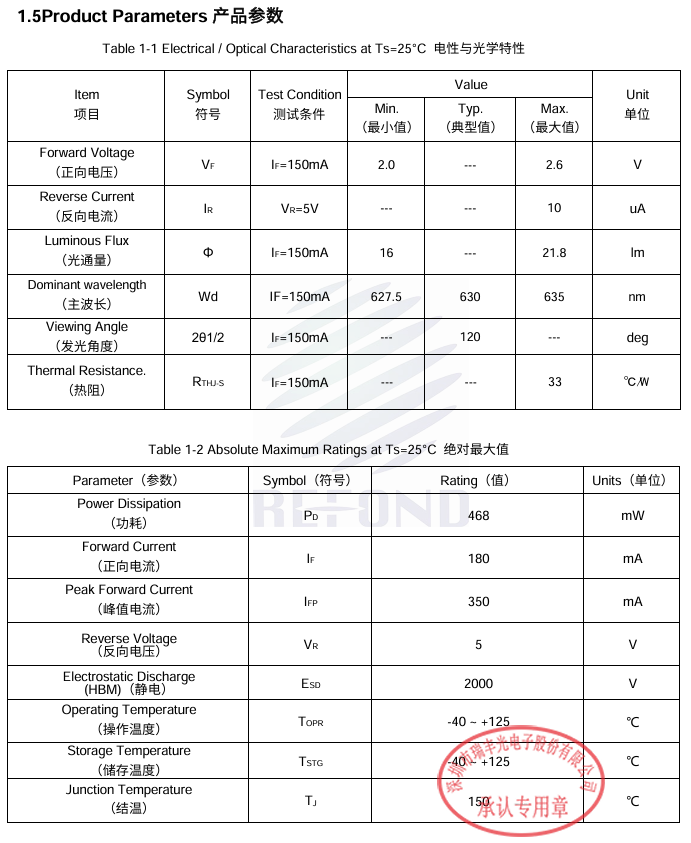

Nghynnyrch	Bwerau	Lliwiff	Ta @25 gradd (teip.)				Max Current (MA)	ongl wylio (gradd))	Acd gwrthsefyll foltedd () hbm	Automotie safonol
Nghynnyrch	Bwerau	Lliwiff	Os (ma)	vf (v)	Fflwcs/iv	Xy/wd	Max Current (MA)	ongl wylio (gradd))	Acd gwrthsefyll foltedd () hbm	Automotie safonol
Rf - a3e27 - w60e-b1	0.5W	Ngwynion	150	2.8-3.4	55.3-61.2-67.8-75.3-83.7	VM1/VM2/VM3/VM4/VM5/VM6/VM7	240	120 gradd	8000	Aec - Q102

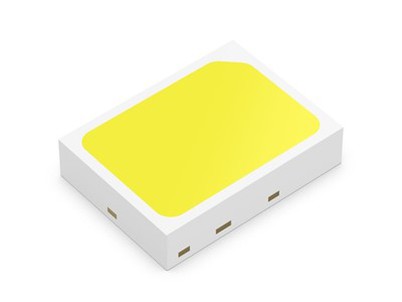

Rf - a3e27 - w60h-b3	1.0W	Ngwynion	350	2.8-3.4	105-117-130-144	VM1/VM2/VM3/VM4/VM5/VM6/VM7	420	120 gradd	8000	Aec - Q102
Rf - a3e27 - Wyse-b1	0.5W	PC Amber	150	2.8-3.4	40.9-45.3-50-55.3-61.2	Am1 (0.572,0417)	240	120 gradd	8000	Aec - Q102
Rf - a3e27 - wysg-b3	1.0W	PC Amber	300	2.8-3.4	67.8-75.3-83.7-93.2	Am1 (0.572,0417)	360	120 gradd	8000	Aec - Q102
Rf - a4e27 - r15e-r4	0.5W	Coched	150	2.0-2.6	26.9-30-33.4-37	612.5-615-617.5-620	200	120 gradd	8000	Aec - Q102
Rf - a4e27 - r22e-r4	0.5W	Coched	150	2.0-2.6	24.2-26.9-30-33.4-37	617.5-620-622.5-625	200	120 gradd	8000	Aec - Q102
Rf - a4e27 - r30e-r4	0.5W	Coched	150	2.0-2.6	16-17.7-19.6-24.2	627.5-630-632.5-635	200	120 gradd	8000	Aec - Q102
Rf - a4e27 - R15H-S4	1.0W	Coched	350	2.0-2.6	55.3-61.2-67.8-75.3	612.5-615-617.5-620	420	120 gradd	8000	Aec - Q102
Rf - a4e27 - R15H-S6	1.0W	Coched	350	2.0-2.6	61.2-67.8-75.3-83.7	612.5-615-617.5-620	420	120 gradd	8000	Aec - Q102
Rf - a4e27 - r22H-s1	1.0W	Coched	350	2.0-2.6	50-55.3-61.2-67.8	617.5-620-622.5-625	420	120 gradd	8000	Aec - Q102
Rf - a4e27 - r30h-s4	1.0W	Coched	350	2.0-2.6	40.9-45.3-50-55.3	627.5-630-632.5-635	420	120 gradd	8000	Aec - Q102
Rf - a4e27 - r15m-s6	2.0W	Coched	700	2.2-2.8	93.2-105-117	612.5-615-617.5-620	840	120 gradd	2000	Aec - Q102
Rf - a4e27 - r22m-s2	2.0W	Coched	700	2.2-2.8	83.7-93.2-105-117	617.5-620-622.5-625	700	120 gradd	2000	Aec - Q102
Rf - a4e27 - y92e-y4	0.5W	Felynet	150	2.0-2.6	19.6-21.8-24.2-26.9	587.5-590-592.5-595	180	120 gradd	2000	Aec - Q102
Rf - a4e27 - y92h-s4	1.0W	Felynet	350	2.0-2.6	40.9-45.3-50-55.3	587.5-590-592.5-595	420	120 gradd	2000	Aec - Q102
